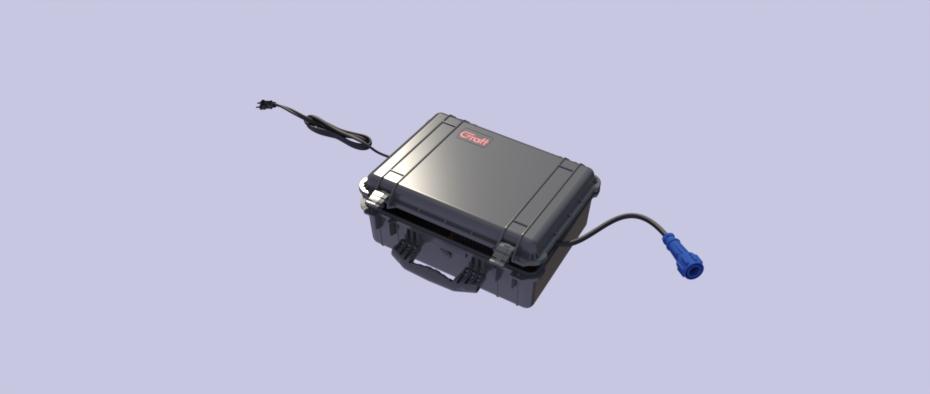

The Graft Medium Charger


With over 3000W* of charging power, the Medium Charger is  100% compatible with all Graft vehicles.

The Graft Medium charger delivers fast charge performance for all Graft Monolith Batteries. The charger communicates directly with the battery to ensure safety during the charge session.

Our chargers are built as tough as our vehicles.  Ulta tough housing in tough impact resistance cases. The Cases are IP67 sealed for water resistance and include pressure relief valves.

All cables are housed inside the case for protection. 2M cable from

US / EU / UK Wallplugs available.





Plug Types

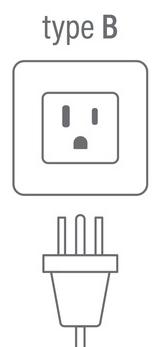

Type B - USA

Common  in the USA, Canada & Mexico
3 pins
Grounded
15A AC current
110V

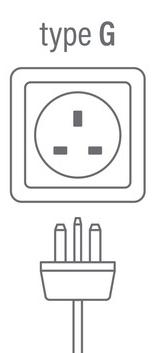

Type G - UK

United Kingdom, Ireland, Malta, Malaysia & Singapore
3 pins
Grounded
13A AC current
220-240V

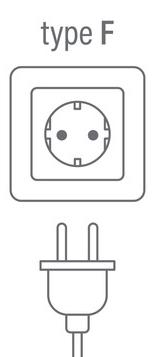

Type F - EU

European Union
2 pins
Grounded
16A AC current
220-240V


Tech Specs

3,300 Watt*
Charge Power
30 Minutes**
Charge Time
kG
Weight
IP67
Water resistance 1 meter deep for 30 minutes

Graft Swap system

100% compatible with all Graft Vehicles.

Fully weather / water sealed


Rain and pressure wash approved.

Wide input voltage

90-240V input voltage range.

Ultra Rugged polymer case


Thick, impact resistance case for long life.


* Charge power with 220V input. Power reduced at 110V
** Charge time for Graft Monolith Race Battery
